Progressive Lubrication System for Oil and Grease
Description:

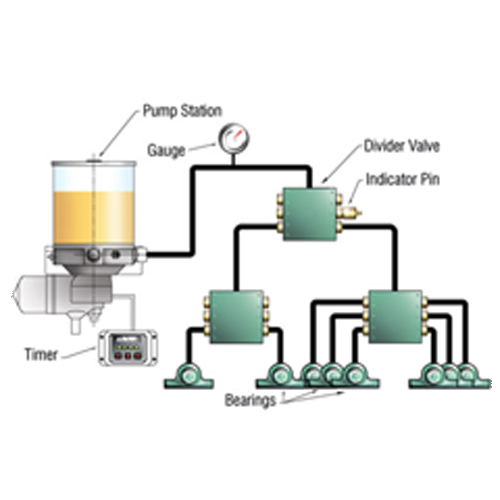

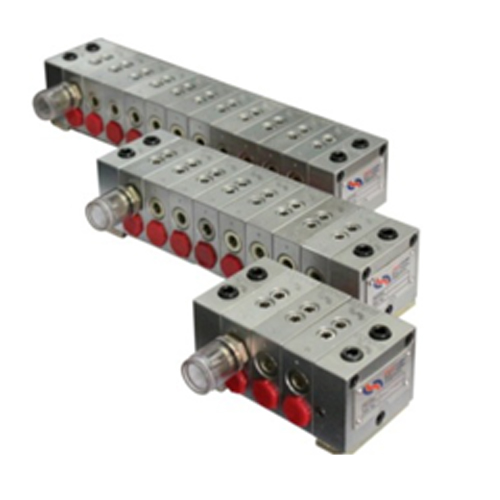

A simple progressive system consists of a pump and a distributor block. The distributor block (called as progressive block) will dispense the lubricant in measured amount directly in the lube points through the feed lines. The visual indicator pin on the progressive block confirms the delivery of lubricant. The pin moves in and out in each cycle of the lubricant delivery.

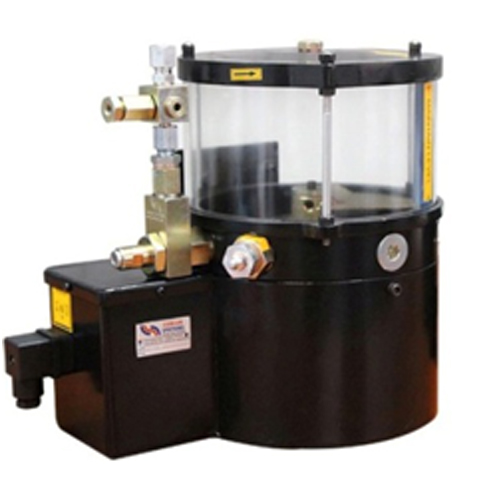

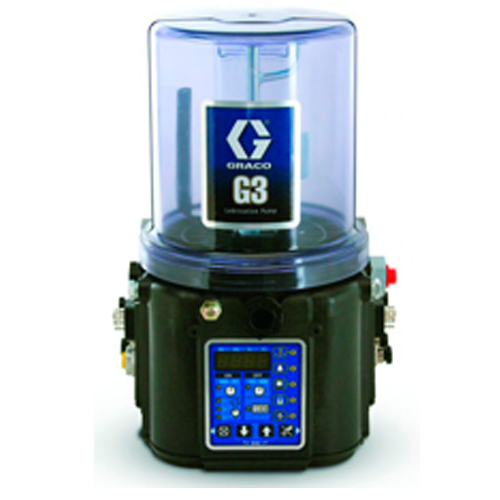

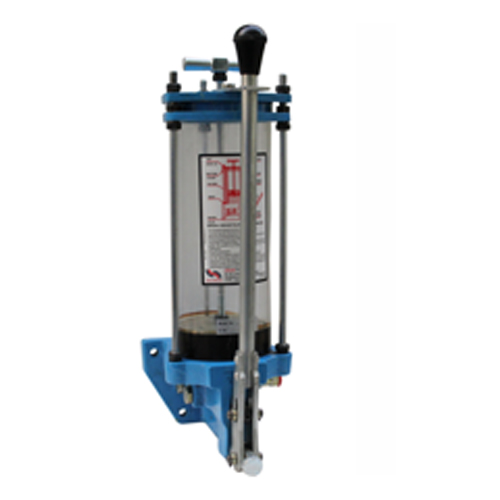

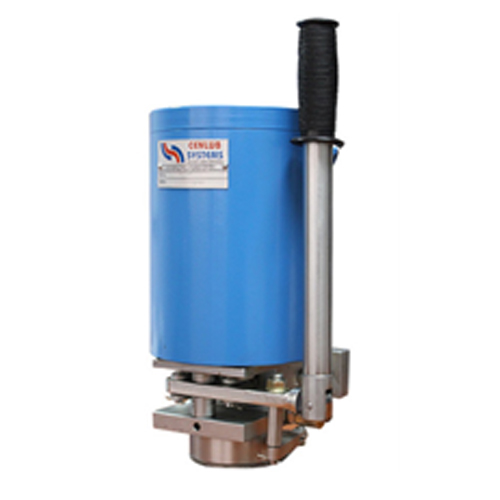

System can be operated by a manual, motorized or pneumatic pump.
The complete system can be automated by incorporating a controller. The pump will be activated
at regular intervals for fixed number of lubrication cycles while the production machine is in
operation. Progressive Block will dispense small measured amounts of lubricant in each and every
cycle. Progressive Systems are used for continuous as well as time based intermittent lubrication
